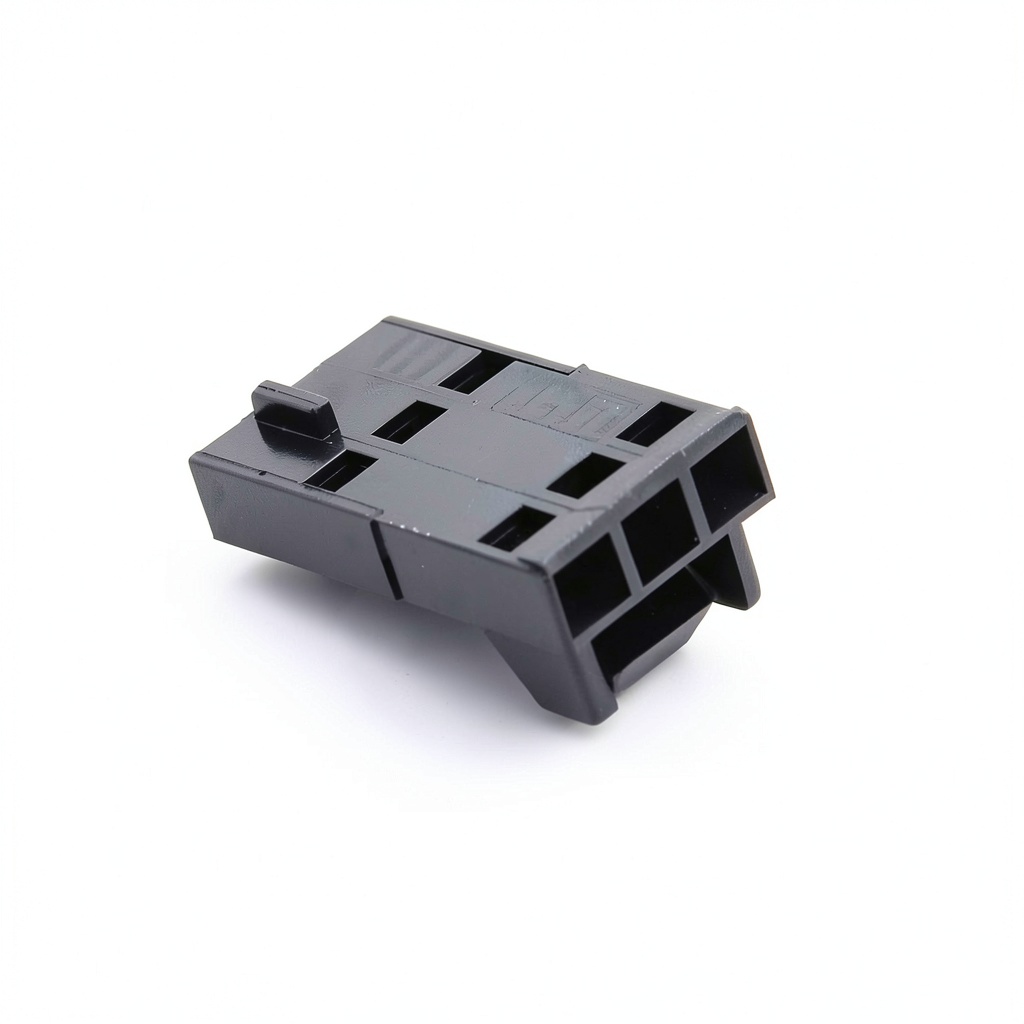

A2547HA-3P Crimp Terminal Housing 2.54mm 10 Pack by MidzooMod

Description

Product Overview

The A2547HA-3P crimp terminal housing is engineered to meet the rigorous demands of modern industrial and scientific applications. Constructed from high‑impact resistant polymer, each housing offers a secure, insulated enclosure for the terminal pins, protecting them from environmental contaminants and mechanical stress. The 2.54mm (0.100″) pitch aligns perfectly with standard printed circuit board (PCB) layouts and wire harnesses, ensuring a seamless fit without the need for additional adapters. Designed for a 10‑piece pack, the set provides ample inventory for both prototype development and large‑scale production runs, reducing lead times and inventory costs. The terminals are compatible with a wide range of conductor sizes, from 22‑24 AWG solid wire to stranded cables, delivering consistent crimp performance across diverse wiring scenarios. MidzooMod, the manufacturer, adheres to ISO‑9001 quality management standards, guaranteeing that each housing passes stringent dimensional and electrical testing before shipment.

Usage

These terminal housings excel in environments where reliability and ease of assembly are paramount. Typical use cases include automation control panels, motor drives, PLC (Programmable Logic Controller) interfaces, and sensor networks. The robust insulation protects against voltage spikes up to 600V, making them suitable for both low‑voltage signal lines and higher‑voltage power distribution. Installation is straightforward: insert the stripped wire into the terminal, apply a calibrated crimp using a standard hand crimper, and snap the housing into the PCB or stripboard. The design accommodates both vertical and horizontal mounting orientations, offering flexibility for space‑constrained enclosures. Field technicians appreciate the quick‑connect nature of the housings, which reduces downtime during maintenance or upgrades. Additionally, the terminals are rated for repeated insertion and removal, supporting troubleshooting and rework without compromising contact integrity.

Why Choose Us

Choosing MidzooMod means selecting a partner committed to durability, precision, and customer support. Our terminal housings undergo a multi‑stage inspection process, including visual inspection, dimensional verification, and electrical continuity testing, ensuring each unit meets exacting standards. The polymer material is flame‑retardant and complies with UL94 V‑0 classification, providing an added layer of safety in high‑temperature environments. We back our products with a responsive technical assistance team that can guide you through proper crimping techniques, compatibility checks, and troubleshooting steps. Our logistics network guarantees fast delivery, and we offer flexible packaging options for bulk orders. By integrating these housings into your designs, you benefit from reduced assembly errors, lower warranty claims, and longer product lifespans, ultimately delivering cost savings and performance gains to your end customers.

Key Features

• High‑impact polymer housing protects terminals from mechanical damage and environmental exposure.
• Precise 2.54mm pitch ensures perfect alignment with standard PCB layouts and wire harnesses.
• Compatible with a wide range of wire gauges, supporting both solid and stranded conductors.
• Flame‑retardant UL94 V‑0 rating provides safety in high‑temperature and high‑voltage applications.
• Dedicated customer support and technical assistance for seamless integration and troubleshooting.

FAQ

What wire sizes are compatible with the A2547HA-3P terminals?

The terminals accept conductors ranging from 22 AWG to 24 AWG for solid wire and up to 28 AWG for stranded cables, providing flexibility for most industrial wiring needs.

Can these housings be used on both vertical and horizontal PCBs?

Yes, the design supports both mounting orientations, allowing you to adapt the layout to space constraints and mechanical design requirements.

What is the maximum voltage rating for these terminal housings?

Each housing is rated for up to 600 V, making them suitable for a variety of low‑ and medium‑voltage applications in automation and control systems.

Do you offer technical support for proper crimping procedures?

MidzooMod provides comprehensive technical assistance, including crimping guidelines, tool recommendations, and troubleshooting resources to ensure optimal performance.

Are the terminal housings compliant with any industry standards?

Yes, they meet ISO‑9001 quality management standards and are UL94 V‑0 flame‑retardant certified, aligning with common industrial safety and reliability requirements.
